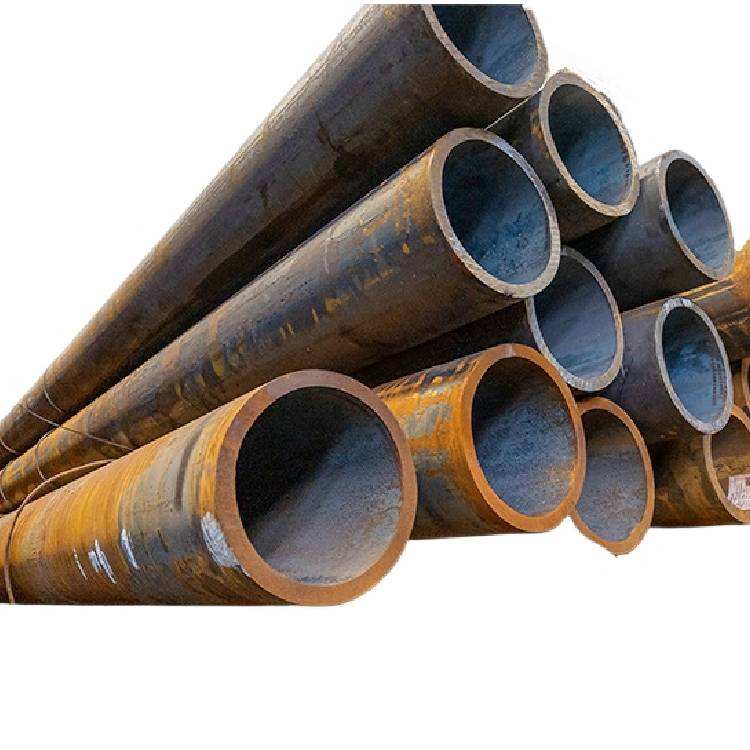

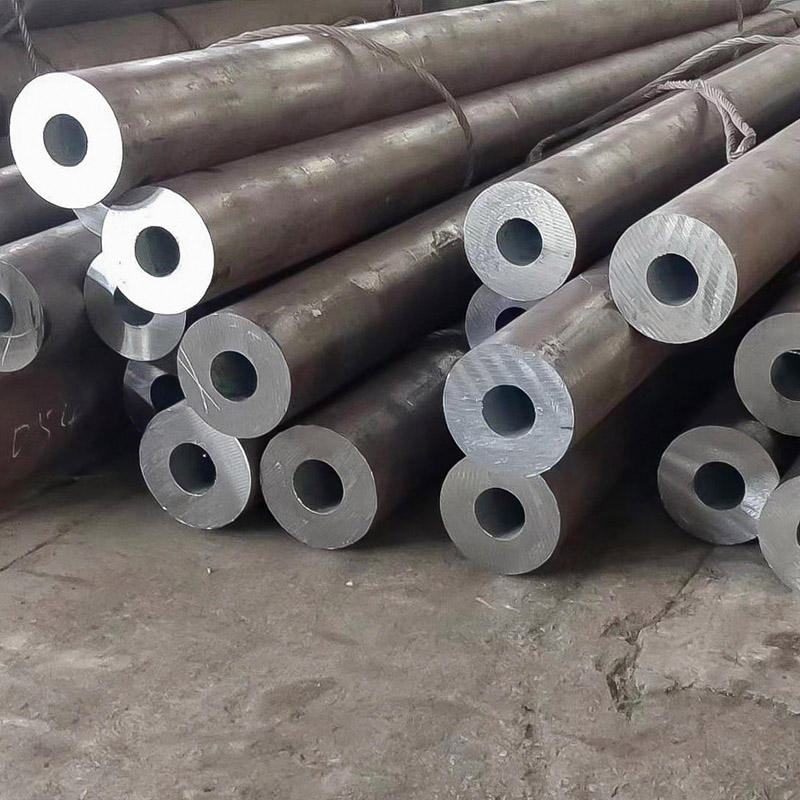

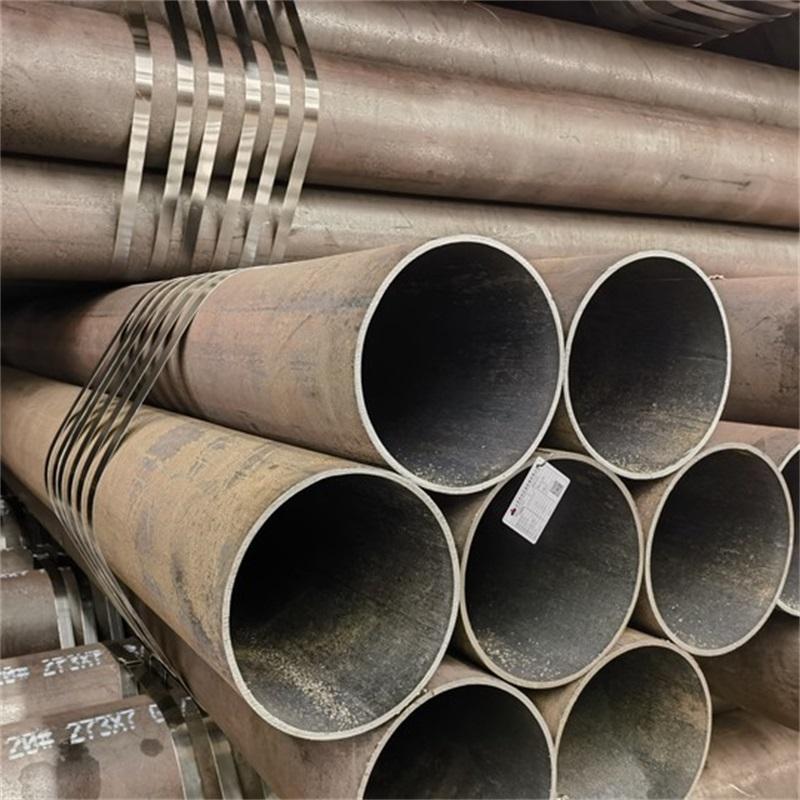

Schedule 40 Carbon Steel Pipe

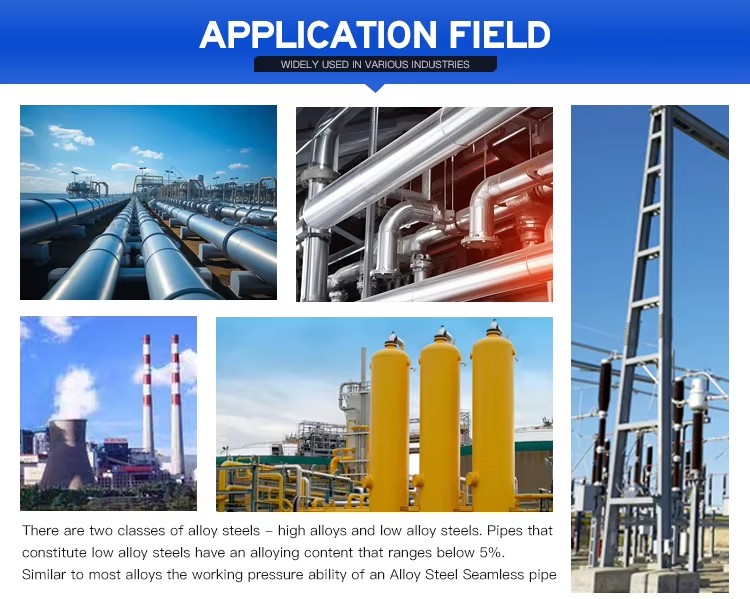

Common Applications:
Schedule 40 carbon steel pipe is used in virtually every industry:
Plumbing and HVAC: Water supply and drain lines, heating systems, air conditioning condensate lines.
Industrial Process Piping: Transporting process water, air, steam, oil, and other fluids in factories and plants.
Oil and Gas: Gathering lines, production piping, utility lines (non-critical service).
Fire Protection Systems: Sprinkler system piping (often specifically required by code).
Structural Applications: Used as columns, handrails, frames, and support structures. In this case, the pressure rating is less important than the mechanical strength.
General Fabrication: For frames, rollers, and custom projects.

For our full product, please contact us

Request Information

c4cc9e96bc15c0dc9441e056923cfb0

StandardAPI 5L, API 5CT, ASTM A106/A53, ASTM A519, JIS G 3441, JIS G3444, JIS G3445, DIN 2391, EN10305, EN10210, ASME SA106, SA192 SA210,
SA213,SA335, DIN17175, ASTM A179
Out Diameter10.3- 1016mm
Wall Thickness1.0-100mm
Pipe LengthFixed length, random length SRL, DRL or as required
Materialcarbon steel pipe
Steel GradeAPI 5L, GR B, X42, X46, X56, X60,X65,X70
ASTM A53.A106: GR A, GR B, GR C
ASME SA106: GR. A, GR.B, GR.C
ASME SA192: SA192
ASME SA209M: T1, T1a
ASME SA210: GR.A-Q, GR.C
ASME SA213: T2, T5,T9, T11, T12, T22
ASME SA335: P2, P5, P9, P11, P12, P22, P91
DIN7175: ST35.8,ST45.8,15Mo3, 13CrMo44
Heat TreatmentAnnealed: Bright annealed, Spheroidize annealed, Normalized, Stress relieved, Cold finished, Quenched and Tempered
SurfaceBlack paint, varnish, oil, galvanized
End Protector1. Plastic caps (small OD)

2. Iron protector (large OD)
ApplicationFluid pipe, oil pipe, gas pipe, structure pipe, boiler tubes
TestChemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, Hydro static Test, X-ray Test.
RemarkSpecial design available according to requirement

24e2d80f6343b9445726d467992aa3d5

tandard

Steel

Grade

Chemical composition, %

Tensile strength,

MPa

Yield strength, MPa

Elongation, %


C

Mn

P

S









MAX

MIN

API-5L

B

0.27

1.15

0.03

0.03

413

241

21.5-29.5




X42

0.29

1.25

0.03

0.03

413

289

21.5-29.5




X46

0.31

1.35

0.03

0.03

434

317

20.5-28.5




X52

0.31

1.35

0.03

0.03

455

358

19.5-27




X56

0.26

1.35

0.03

0.03

489

386

18.5-25.5




X60

0.26

1.35

0.03

0.03

517

413

17.5-24



StandardGradeChemical Components (%)Mechanical Properties
ASTM A53CMnPSTS(Mpa)YS(Mpa)
A≤0.25≤0.95≤0.05≤0.06≥330≥205
B≤0.30≤1.2≤0.05≤0.06≥415≥240
ASTM A106A≤0.300.29-1.06≤0.035≤0.035≥415≥240
B≤0.350.29-1.06≤0.035≤0.035≥485≥275
ASTM SA179A1790.06-0.180.27-0.63≤0.035≤0.035≥325≥180
ASTM SA192A1920.06-0.180.27-0.63≤0.035≤0.035≥325≥180
API 5L PSL1A0.220.90.030.03≥331≥207
B0.281.20.030.03≥414≥241
X420.281.30.030.03≥414≥290
X460.281.40.030.03≥434≥317
Pipe typesSizes(mm)TolerancesTypesApplication
Hot rolledOD<50±0.50mmStructure PurposesGeneral structure and mechanical
OD≥50±1%Liquid ServicesPetroleum, gas and others
WT<4±12.5%Low and Medium Pressure Boiler TubeSteam and boiler manufacturing
WT 4～20+15%, -12.5%Hydraulic Pillar ServiceHydraulic support
WT>20±12.5%Auto Semi-shaft CasingAuto sem-shaft casing

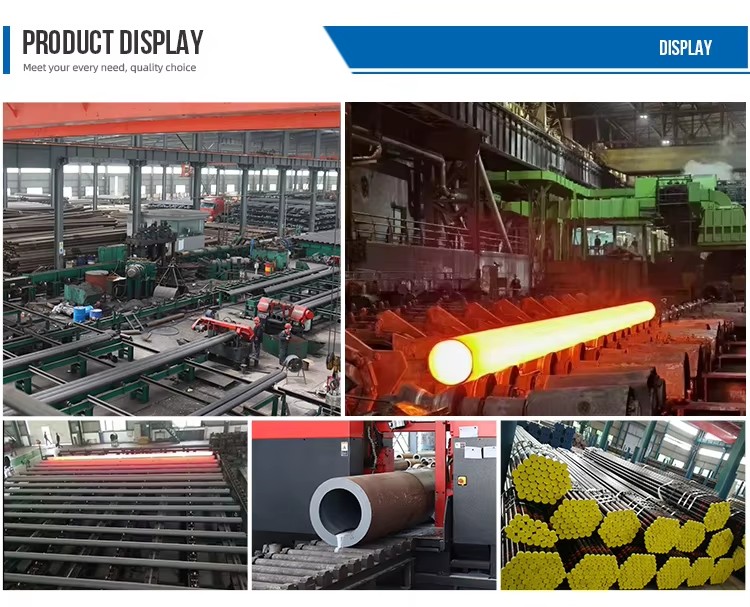

ef66e24a9bd54e51602e463d39efe09d

4743bc7056412d0b7b7cb2c4e48c8910

f188724af2265c51b738ba62b6fc737

45bb87965169f9e45f5f322d11a9e81

745aa3fb818d343e8855eaa8613d902

0634b5a1f9a517eacb0b275a090e4f12

72b7e40e5919cbf48ea2a42e32d91127

94981deacc76b0293ca63edafd292d77

12d911ff84949f5943f8ecf3a07e70c

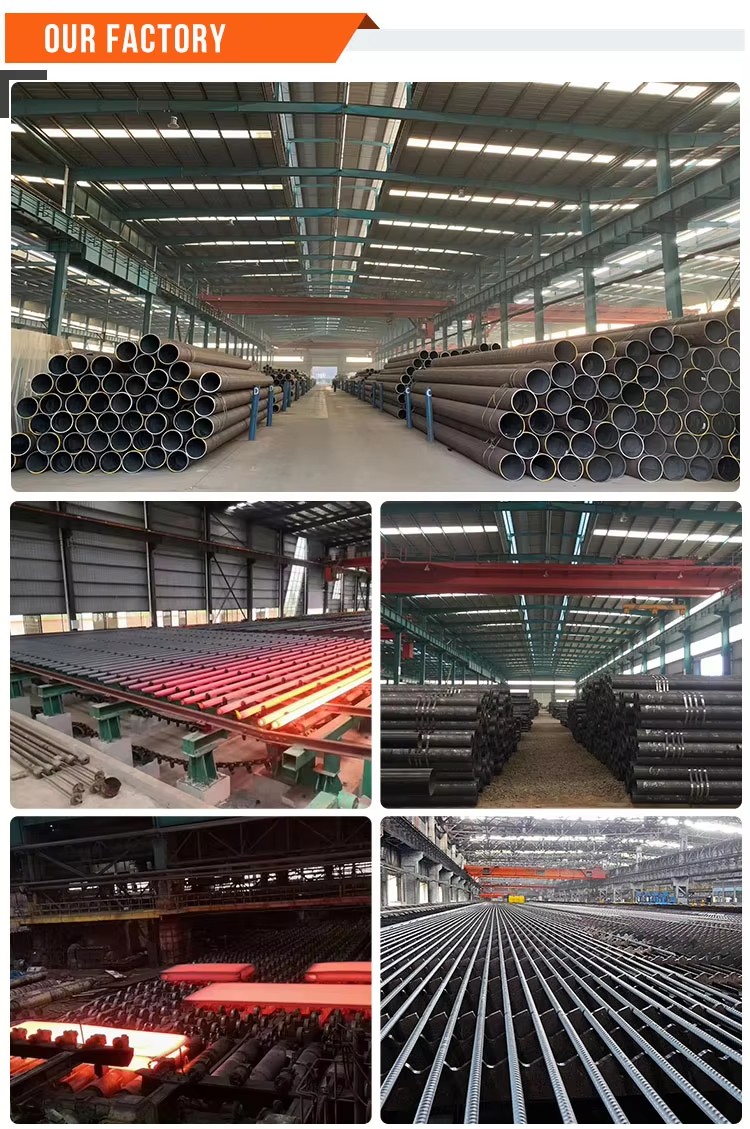

Shandong Tanggang Metal Products Co., Ltd. is located in Jinan, China's largest steel production base, adjacent to the ports of Tianjin and Qingdao. We manufacture and supply stainless steel, carbon steel, steel plates, steel pipes, galvanized steel coils, color-coated galvanized steel coils, and various profiles (rails, I-beams, H-beams, angles, etc.) year-round. We can also customize other metal products according to customer needs. Our annual export volume is approximately 1.1 million tons. We guarantee that almost all inquiries will be processed within three hours. We have a professional testing center equipped with advanced testing equipment and employing over ten technical experts and professional testing personnel. We provide chemical composition analysis, mechanical property testing, and microstructure analysis of steel, providing reliable assurance of product quality and supporting product research and development and improvement. All products are supplied in accordance with DIN/EN, ASTM/ASME, DIN, and JIS standards, and can be supplied according to customer-provided standards and technical specifications. Our clients include industries such as petroleum, chemical machinery, power generation, water treatment equipment, elevators, kitchenware, food processing, pressure vessels, and solar water heaters. Our business principles are: customer first, excellent quality, comprehensive product range, and reasonable pricing. Shandong Tanggang Metal Products Co., Ltd. sincerely hopes to establish long-term cooperative relationships with our customers for mutual benefit and common development
